Description
| Feature | Details |
|---|---|
| Model Name | LT‑2204 |
| Optical Design | Double beam system with simultaneous sample and reference measurement |
| Wavelength Range | 190 nm to 1100 nm |
| Variable Bandwidth | Adjustable from 0.5 nm to 5 nm for enhanced spectral resolution |
| Sample Holder | Integrated 8‑cell automatic holder for high‑throughput testing |
| Light Sources | Deuterium lamp (UV) and Tungsten‑Halogen lamp (Visible) |
| Display Type | High‑resolution digital graphical screen with real‑time spectrum view |
| Processing Capabilities | Wavelength scanning, kinetic analysis, photometric mode, quantitative mode |
| Data Handling | Internal memory, PC connectivity, printer interface, LIS compatibility |
| Build Quality | Rugged housing with compact footprint and ergonomic controls |
| Applications | Pharmaceutical QC, biotechnology research, food and environmental testing |
Product Overview

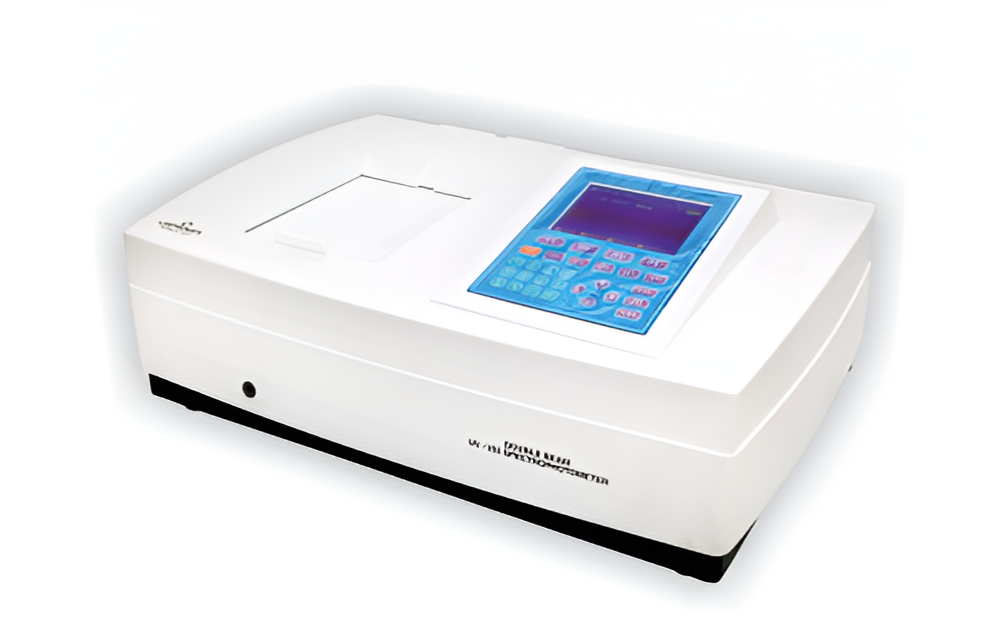

The Labtronics LT‑2204 Double Beam Microprocessor UV/VIS Spectrophotometer is a premium‑grade analytical instrument developed to meet the high‑accuracy demands of modern laboratories. Equipped with variable bandwidth control and an 8‑position cell holder, it supports laboratories that require detailed analysis, rapid testing, and simultaneous multi‑sample handling.
Advanced Optical Design for Accurate Results
The LT‑2204 is built on a double beam optical platform, allowing simultaneous comparison between sample and reference channels. This design reduces baseline drift, minimizes errors from light source fluctuations, and delivers consistently precise readings. It provides a wide wavelength coverage from 190 nm to 1100 nm, making it suitable for UV as well as visible spectrum analysis.
Variable Bandwidth for Greater Flexibility
Unlike fixed‑bandwidth spectrophotometers, the LT‑2204 offers a variable bandwidth range (0.5 nm to 5 nm), giving users the ability to optimize resolution for specific analytical needs. Whether you are separating closely spaced peaks or performing detailed impurity analysis, this feature ensures accurate, high‑definition results.
8‑Cell Holder for High‑Throughput Testing
With its integrated 8‑cell holder, multiple samples can be analyzed sequentially or in batches without repeated manual adjustments. This significantly improves efficiency in laboratories with heavy workloads such as pharmaceutical QA/QC units, environmental testing agencies, and educational research facilities.
Smart Microprocessor and User‑Friendly Operation
An intelligent microprocessor drives automated functions like scanning, kinetic studies, photometric measurement, and quantitative analysis. The high‑resolution digital screen provides clear absorbance, transmittance, and concentration readings. The menu‑driven interface allows even novice users to operate the device confidently.
Seamless Data Handling and Connectivity
The LT‑2204 offers data export to PCs and printers and integrates easily with Laboratory Information Systems (LIS). Built‑in memory ensures secure data storage and easy retrieval for documentation and regulatory audits.
Durable Build for Long‑Term Reliability
Engineered with a compact, rugged housing, this spectrophotometer resists dust, temperature fluctuations, and mechanical disturbances. Its ergonomic layout conserves bench space while maintaining full operational capability.
