Description
| Feature | Details |
|---|---|
| Model | LT‑2301 |
| Optical System | Double Beam configuration with simultaneous reference/sample measurement |
| Light Source | High‑intensity Xenon flash lamp |
| Wavelength Range | 190 nm – 1100 nm (UV and Visible regions) |
| Detectors | Silicon photodiode detectors with high sensitivity |
| Measurement Modes | Photometric, Quantitative, DNA/Protein, Kinetics, Wavelength Scan |
| Resolution | High spectral resolution with low stray light |
| Data Handling | USB connectivity, internal memory, export to PC or printer |
| Software Compliance | GLP/GMP compliant with audit trails and user management |
| Sample Holders | Compatible with standard 10 mm cuvettes, flow cells, and microcells |
| Design | Compact, corrosion‑resistant build with enclosed optics for durability |

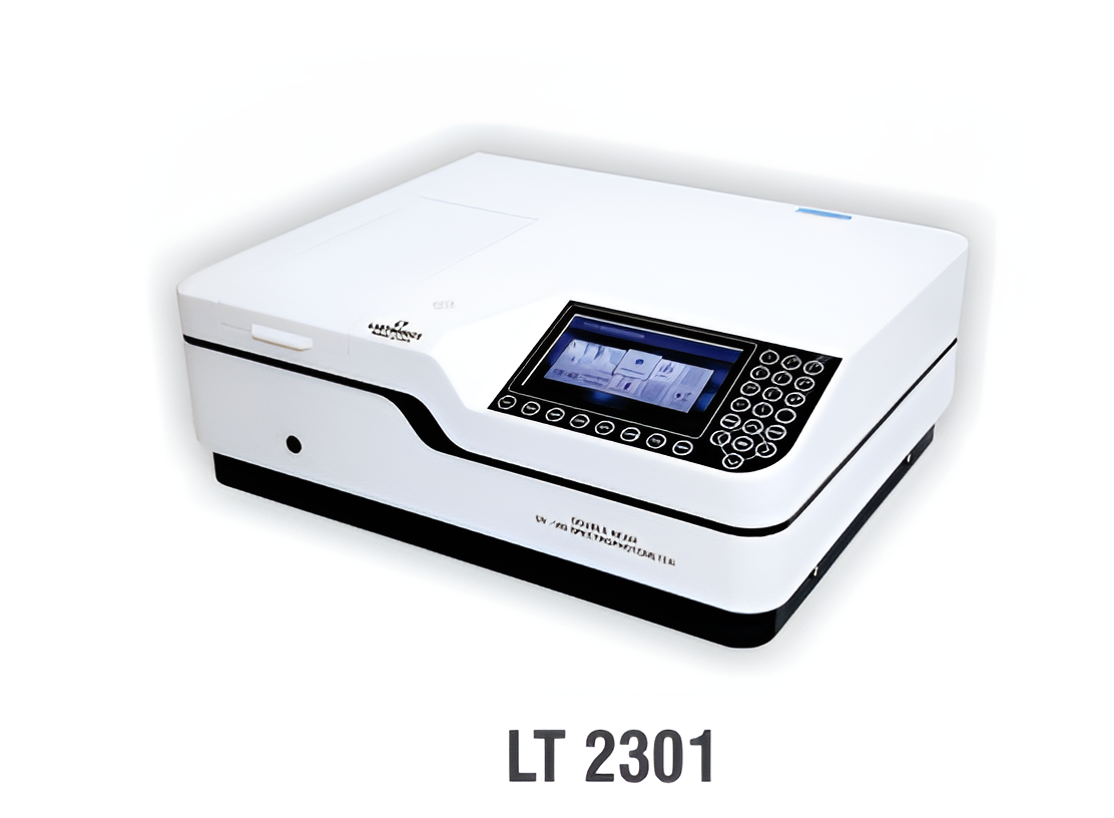

Product Overview – Labtronics LT‑2301
The Labtronics LT‑2301 Double Beam UV/VIS Spectrophotometer is purpose‑built for laboratories that demand exceptional accuracy, fast operation, and robust data integrity. Combining a cutting‑edge optical system with intelligent software, it is perfectly suited for pharmaceutical quality control, chemical research, environmental analysis, and clinical diagnostics.
Advanced Double Beam Optics
Unlike single‑beam instruments, the LT‑2301 continuously compares a reference beam with the sample beam in real time. This configuration compensates for light source fluctuations, maintains a stable baseline, and ensures highly reproducible readings even during extended testing or kinetic studies.
Xenon Lamp Technology
At the heart of this spectrophotometer is a high‑performance Xenon flash lamp, offering intense and stable illumination across a 190–1100 nm range. The Xenon system reduces heat build‑up, extends operational life, and delivers consistent light output—ideal for labs looking for low‑maintenance, long‑life instruments.
User‑Friendly Interface
A high‑resolution touch screen provides quick access to testing modes, spectral scans, and stored methods. Its intuitive menu layout minimizes operator training time, while live graphical feedback simplifies result interpretation.
Versatile Measurement Modes
The LT‑2301 supports:
- Quantitative analysis for concentration measurements
- Photometric mode for absorbance/transmittance readings
- DNA/Protein analysis for life science workflows
- Kinetic studies and spectrum scanning for research flexibility
This versatility makes it a multi‑purpose solution for routine and advanced analytical tasks.
Data Security and Compliance
Built‑in software ensures GLP/GMP compliance with features like:
- User authentication and password control
- Audit trails for regulatory audits
- Automated calibration logs
Data can be exported via USB to PCs or LIMS systems, and the instrument is compatible with printers for immediate documentation.
Durability and Compact Design
The LT‑2301’s corrosion‑resistant chassis and sealed optics protect it from dust and lab contaminants, ensuring a long lifespan with minimal drift. Despite its rugged design, the instrument has a compact footprint, ideal for crowded laboratory benches.
Applications Across Industries
- Pharmaceuticals: Active ingredient testing, dissolution monitoring
- Environmental Labs: Water, soil, and air quality analysis
- Food & Chemical Industries: Colorimetry and compound purity testing
- Academia: Training, teaching, and advanced research projects
