Description
| Feature | Specification |
|---|---|
| Model Name | Labtronics LT-1520 |
| Imaging System | Integrated High-Resolution CMOS Camera |
| Display Interface | Built-in Android Touchscreen Tab (10-inch) |
| Illumination Sources | UV Transilluminator (312 nm) and White Light Panel |
| Resolution | ≥ 10 Megapixels for High Clarity Image Capture |
| Image Storage | Internal Memory + USB Drive Support |
| Image Output Formats | JPEG, PNG, BMP, TIFF |
| Image Processing Tools | Brightness, Contrast, Band Quantification, Real-time Annotation |
| Software | Pre-installed with Image Enhancement & Band Analysis Tools |
| Safety Features | UV Protection Shield, Auto Light Cutoff |
| Connectivity Options | USB, Wi-Fi (for Cloud Storage Sync) |
| Power Supply | 230V ±10%, 50 Hz |
| Construction | Compact, Rugged Enclosure with Anti-Slip Base |
| Operating Temperature | 15°C – 35°C |
| Supported Applications | DNA/RNA Gel Imaging, Protein Detection, Fluorescence Gel Analysis |
Product Overview

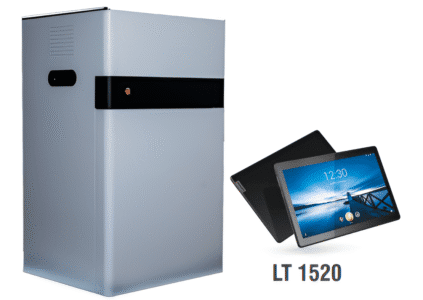

The Labtronics LT-1520 Gel Documentation System (Tab Model) is a next-generation lab imaging device tailored for molecular biology, biotechnology, and genetics labs. It’s designed to make gel documentation easy, accurate, and digital—eliminating the need for external cameras, PCs, or complicated software installations.
Smart Gel Imaging, Simplified
With a built-in high-resolution CMOS camera and a responsive touchscreen tablet interface, the LT-1520 enables real-time imaging, editing, and documentation in a single workflow. You can capture sharp images of DNA, RNA, or protein gels with outstanding clarity and process them directly using inbuilt tools. Whether you’re preparing data for research reports, publications, or record-keeping, the system delivers publication-ready results without external editing.
All-in-One Functionality
This compact gel documentation unit combines both UV and white light transillumination, making it compatible with a wide range of staining protocols including ethidium bromide, SYBR Safe, and Coomassie Brilliant Blue. The Android-based touchscreen allows intuitive control over image capture, adjustment, and storage, ideal for labs looking to streamline their electrophoresis workflow.
Enhanced Data Management & Storage
The LT-1520 supports USB storage devices and cloud synchronization (via Wi-Fi), ensuring your gel images are always safe, accessible, and organized. The internal storage is optimized for managing thousands of images, which is highly beneficial for labs involved in long-term research projects or teaching programs.
Designed for Safety and Efficiency
User safety is prioritized with a built-in UV protection shield and auto light cutoff system, minimizing UV exposure risk. The device’s rugged, anti-slip design ensures stability on busy lab benches while also withstanding regular use in high-throughput environments.
Ideal for Educational & Research Labs
From universities and colleges to diagnostic and pharmaceutical labs, the LT-1520 adapts to a wide range of settings. It’s particularly valuable for academic institutions that need a user-friendly and cost-effective gel imaging solution for teaching, practical sessions, and entry-level research.
