Description
| Parameter | Specification |
|---|---|
| Model | LT-3202 |
| Pump Configuration | Dual High-Pressure Pumps (Isocratic & Gradient Modes) |
| Flow Rate Range | 0.001 to 10.000 mL/min (independently programmable) |
| Flow Accuracy | ±1% or better |
| Maximum Pressure | Up to 6000 psi |
| Detector Type | High-Sensitivity UV/Vis Detector (190–700 nm) |
| Detector Resolution | 1.2 nm with auto-zero and baseline correction |
| Column Compatibility | Compatible with all standard HPLC columns (C18, C8, amino, phenyl, etc.) |
| Elution Support | Supports both Isocratic and Gradient Elution |
| Degasser | Integrated Online Vacuum Degasser |
| Auto-Sampler (Optional) | Programmable for batch testing and sample injection |
| User Interface | Touchscreen LCD with real-time monitoring and run configuration |
| Data Handling | USB, RS-232 & Ethernet support for LIMS or external system connectivity |
| Software | Intuitive HPLC control and analysis software (Windows-compatible) |
| Safety Features | Leak detection, overpressure protection, automatic system shutdown |
| Power Supply | 230V ±10%, 50 Hz |
| Build Material | Powder-coated corrosion-resistant metal body with noise-reduction enclosure |

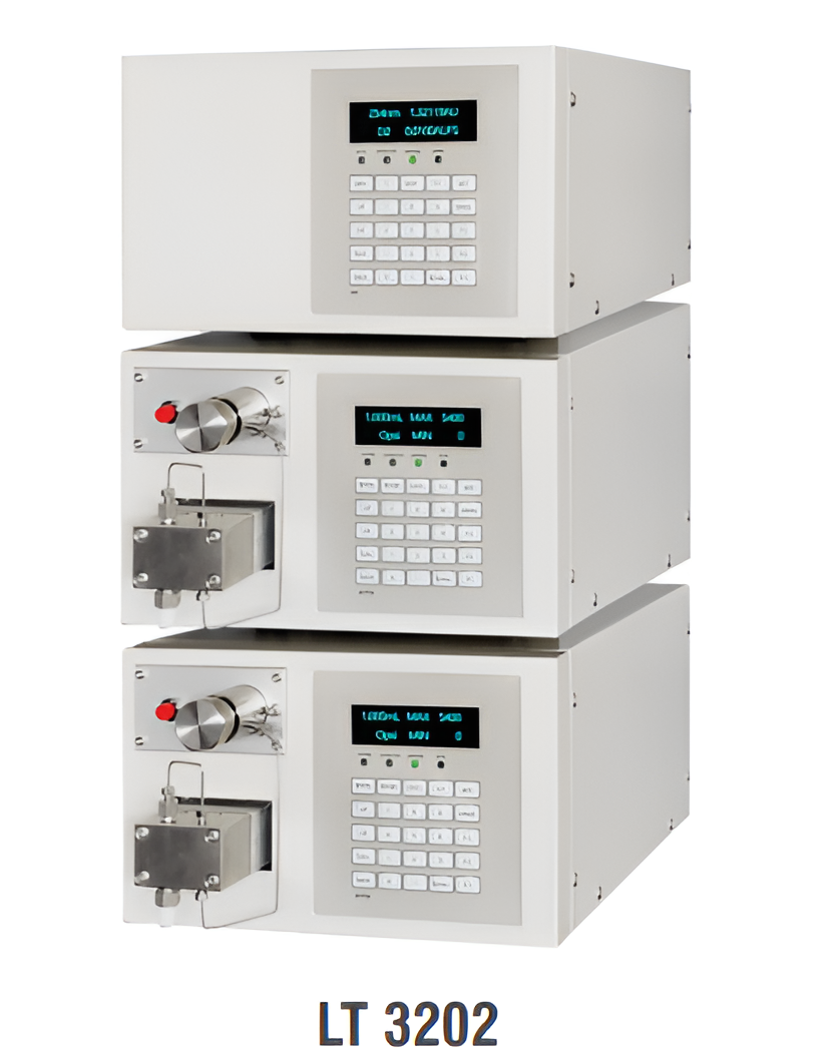

Product Overview: Labtronics LT-3202 HPLC – Where Precision Meets Performance
The Labtronics LT-3202 High-Pressure Liquid Chromatograph (HPLC – Double Pump) is purpose-built for precise chemical separation, detection, and quantification across a wide spectrum of industries, including pharmaceutical testing, food quality assurance, chemical analysis, and environmental labs.
Dual Pump Advantage for Gradient Accuracy
This model’s dual high-pressure pumps enable highly stable solvent delivery—crucial for sharp, well-resolved chromatographic peaks. Operators can switch between isocratic and gradient elution, making the instrument ideal for both simple and complex sample types.
High-Sensitivity Detection
Equipped with a UV/Visible detector, the LT-3202 can detect analytes at trace levels, making it a reliable tool for tasks like drug content analysis, pesticide residue detection, and biomolecule profiling. The detector’s wavelength range and signal resolution ensure clarity and repeatability of results across multiple runs.
Easy Operation and Real-Time Control
The instrument features a modern touchscreen interface that allows easy method setup, monitoring, and adjustment. The system software simplifies run management, peak integration, and report generation—perfect for analysts of all experience levels.
Modular & Upgradeable
With its modular design, labs can start with a basic setup and later integrate add-ons like an autosampler, refractive index detector, or fraction collector as needed. This scalability makes the LT-3202 a future-proof investment.
Built-In Safety and Diagnostics
Key safety systems include leak sensors, over-pressure protection, and an auto-shutdown feature to prevent equipment damage and ensure user safety. Additionally, self-diagnostic tools monitor system performance and prompt timely maintenance alerts.
Ideal for Multiple Applications
Whether analyzing API purity, water quality, or food preservatives, the LT-3202 ensures fast, reproducible, and regulation-compliant results. It is compatible with USP, ICH, and GLP/GMP requirements, making it trusted in regulated and research settings alike.
