Description
| Parameter | Specification |
|---|---|
| Model | LT-3201 |
| Pump Type | High-pressure gradient & isocratic pump system |
| Flow Rate Range | 0.001 – 10.000 mL/min (programmable) |
| Flow Accuracy | ±1% |
| Operating Pressure | Up to 6000 psi (approx. 400 bar) |
| Injector | Manual or autosampler compatible |
| Degasser | Built-in vacuum degasser (4-channel) |
| Column Oven | Programmable temperature control (ambient to 80°C) |
| Detector Options | UV-Vis / PDA / Fluorescence / RI |
| Wavelength Range (UV-Vis) | 190–700 nm |
| Interface | Touchscreen + PC software control |
| Data Output | USB, LAN, RS-232 compatible |
| Software Compatibility | Integrates with LIMS & compliant with 21 CFR Part 11 |
| Power Supply | 230V AC ±10%, 50Hz |
| Construction | Industrial-grade corrosion-resistant frame |
Product Overview

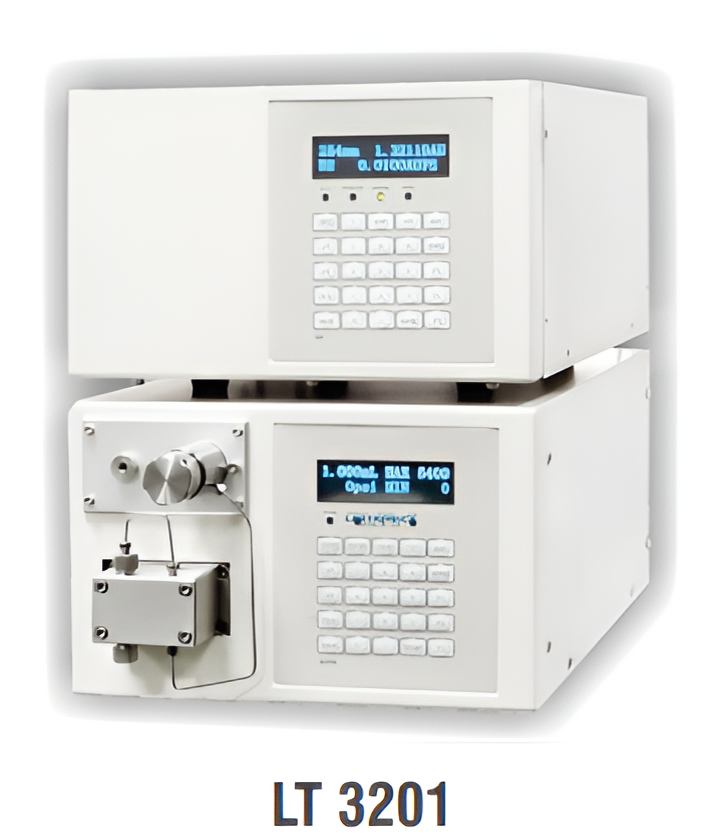

The Labtronics LT-3201 High Pressure Liquid Chromatograph is a next-generation HPLC system purpose-built for laboratories that require fast, accurate, and reproducible chromatographic results. Designed with high-throughput, regulatory compliance, and user-friendliness in mind, the LT-3201 stands out as a reliable workhorse for both routine and advanced analytical tasks.
Optimized for Performance and Sensitivity
Engineered to handle demanding analytical tasks across pharmaceuticals, food safety, environmental testing, and biotech research, this system provides exceptional separation of complex chemical mixtures. The high-pressure pump system ensures consistent flow and accurate solvent delivery, essential for producing sharp peaks and reliable quantification.
Gradient and Isocratic Flexibility
The LT-3201 supports both isocratic and gradient elution, enabling analysts to tailor methods for specific applications. This dual-mode flexibility makes it ideal for everything from simple compound assays to sophisticated impurity profiling.
Advanced Degassing & Solvent Management
With its integrated vacuum degasser, the system removes air bubbles and dissolved gases from the mobile phase in real-time, minimizing baseline noise and maximizing detection accuracy. This allows analysts to work confidently even with sensitive compounds and low concentration analytes.
Precision Sample Handling
The sample injection system offers accurate and reproducible volume control, whether using manual loops or an autosampler. This ensures that even small sample volumes yield valid, repeatable results—critical for high-value or limited-quantity samples.
Multi-Detector Compatibility
The LT-3201 is compatible with multiple detector types, including UV-Vis, PDA, RI, and fluorescence detectors, giving users the versatility to match detection mode with their analysis needs. From trace-level impurities to UV-active biomolecules, the system adapts to various research and QC requirements.
Smart Column Oven Control
Precise thermal control via the programmable column oven ensures retention time stability and enhanced resolution for temperature-sensitive compounds. This adds to method reproducibility, especially during long-term or multi-day runs.
User-Centric Software & Compliance
The HPLC’s intuitive software suite supports real-time monitoring, data logging, integration with LIMS, and full 21 CFR Part 11 compliance. Built-in audit trails, electronic signatures, and automated reporting make it suitable for regulated environments, including pharmaceutical and clinical research.
Compact, Durable, and Built for Indian Labs
With its space-saving, rugged design, the LT-3201 fits well on standard laboratory benches while resisting corrosion and wear. Its build quality and minimal maintenance requirements make it ideal for busy labs, academic setups, or mobile field units.
