Description
Specifications
Product Name – Logic Gate
Quantity/Pack Size – Single Unit
Form – Electronic Instrument
Grade – Laboratory Grade
Application – Digital Circuits, Logic Demonstrations, Electronic Experiments
product overview

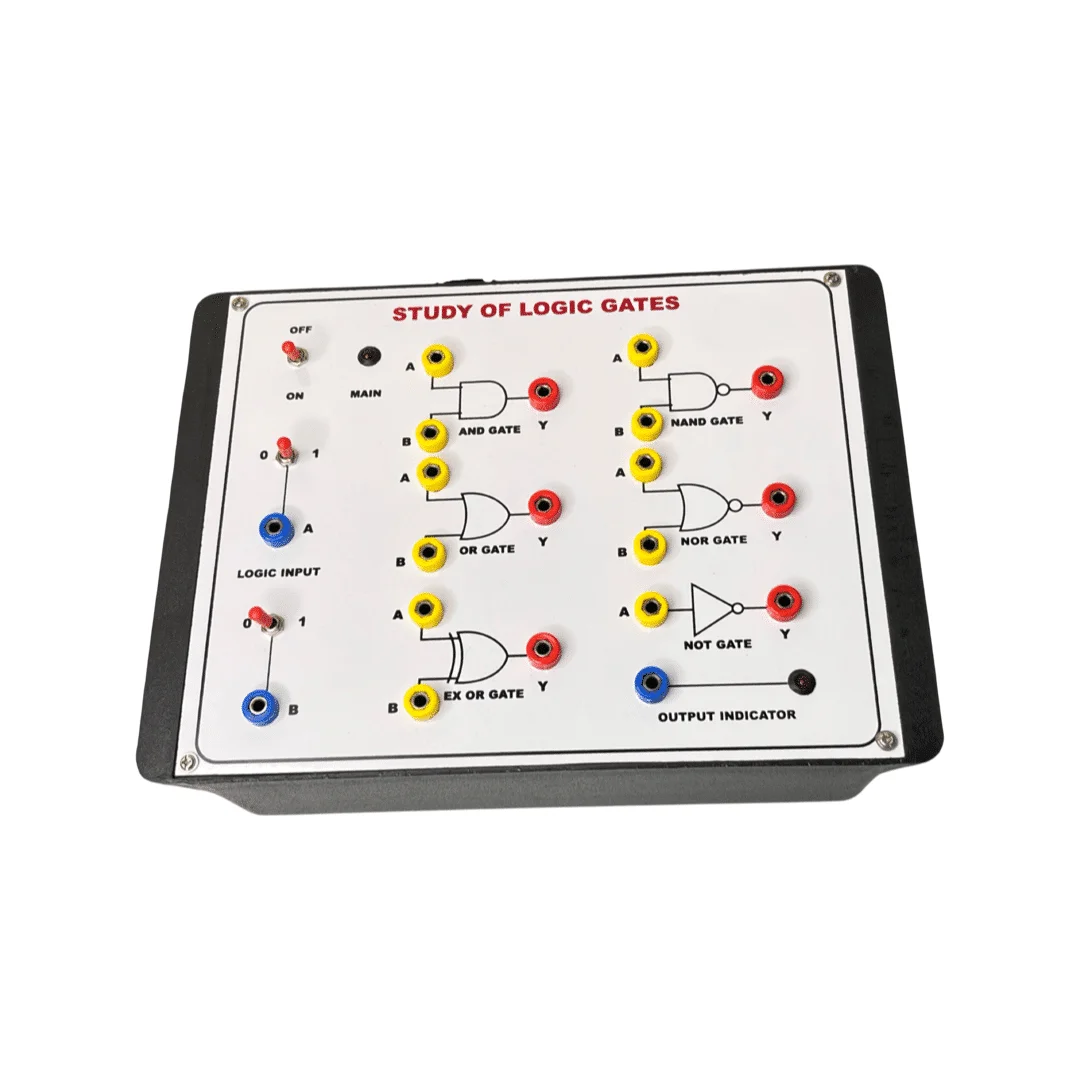

The Logic Gate is a high-quality laboratory instrument designed for precise and reliable electronic experiments. Engineered with durable materials and laboratory-grade components, it ensures consistent input-output behavior for various digital logic applications. Each unit is carefully calibrated to provide accurate responses to electrical signals, making it suitable for hands-on demonstrations, testing, and circuit design experimentation.
Featuring clearly labeled terminals and user-friendly connectors, the Logic Gate allows effortless integration with other laboratory equipment, enhancing workflow efficiency. Its compact and ergonomic design facilitates easy placement on laboratory benches while maintaining stability during usage. The sturdy construction minimizes the risk of damage from repeated handling or electrical stress, ensuring long-term reliability and consistent performance.
The apparatus supports multiple standard logic functions, including AND, OR, NOT, NAND, NOR, XOR, and XNOR, offering comprehensive versatility for diverse experimental setups. Low-resistance circuits and high-quality conductive paths guarantee minimal signal loss and accurate operation. Additionally, the instrument is resistant to corrosion and wear, maintaining performance quality over time. With its combination of precise functionality, robust design, and user-focused layout, the Logic Gate serves as a reliable tool for educators, researchers, and students requiring dependable and efficient digital logic experimentation.
FAQs
1. Which types of digital experiments can the Logic Gate be used for?
It can be used for testing standard logic functions and designing basic to advanced electronic circuits.
2. Is the Logic Gate compatible with standard lab power supplies?
Yes, it is designed to operate safely with common laboratory voltage and current sources.
3. Are there alternative instruments for similar logic testing?
Yes, digital trainer kits and microcontroller boards can provide comparable functionality for logic experimentation.
4. How should the Logic Gate be stored when not in use?
Store in a dry, dust-free area away from moisture and high temperatures to maintain its accuracy.
5. Where can authentic Logic Gate instruments be sourced?
They are available from certified laboratory equipment suppliers offering verified, high-quality digital instruments.
